Re: [802.3_100GCU] Comment #84 return loss analysis summary



Hi All,

Just adding some more analysis data regarding the test channel return loss…

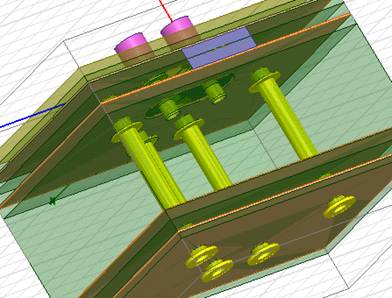

Extraction of short vias with ~15mil stub (4 in a row, 1mm pitch):

Concatenation of: viasè 105ohm trace èvias (Internal layer at the upper half of the board break-out) to get the following return loss:

One can see that, even the -12dB, is a bit hard to achieve and will require high board manufacturing control (impedance / stub length, etc.)

Taking into account that this is a 25Gbps/lane board one would expect it to be optimized and tightly controlled.



Best regards,

Liav





I had to remove the pictures from the former mail (below), because of a mail size limitation of the reflector.

Please refer to the former posted mail for the complete data.



Hi Charles and All,



First I want to specify that I support the incorporation of Comment #84 brought by Charles Moore, but would like to suggest slightly relaxing the test channel return loss requirement from 15dB to 12dB (HFSS extraction results and reasoning for suggesting a different value at the end of this mail).

I find the 15dB may not be feasible taking into account reasonable deviations from ideal design.



The comment:





The reasoning for the 15dB requirement: (As Charles shared with me)

       Return loss testing accuracy would be less influenced due to test fixture reflections.



Suggested altered value:

       Correct the “test fixture” trace max return loss requirement to 12dB (100M – 13GHz) due to the following reasoning and extraction results (a recommendation for 15dB to supply a better return loss measurement may be appropriate):

       One can expect to optimize the vias, choose the right material, minimize multiple reflections as much as possible on a test board.

       It is possible to get return loss of no-stub vias with a combined trace-via loss of 1.5dB to be ~-14dB (no multiple reflections were taken into account).

       A 12mil stub with a combined trace-via loss of 1.5dB is ~-13dB (no multiple reflections were taken into account)..

       Extra degradation seen due to multiple reflections between via (with no stub) and SMA/SMP – Analysis not provided in this Email.

       Minimal stub (4mil dielectric + 2.1mil PS copper) è trace è u-via resulted in -12.5dB – minimal expected multiple reflections.



HFSS extraction summary:

·         “light” capacitance vias were used:

·         Extraction result of a no-stub via. Incorporating a 105ohm trace (reasonable tolerance for sample boards) to get 1.5dB loss @Fb/2:

·         Extraction results of the same vias, but with a 12mil stub (breaking out on PS-2) è max ret loss = -13dB. No multiple reflections were taken into account here.


·         Extraction results – of a vias with a 4 mil stub è trace è u-via: Using a via to break-out to an internal layer adjacent to the print side. Route away using the internal layer and then connect to the PS with a u-via:



Best regards,

Liav
