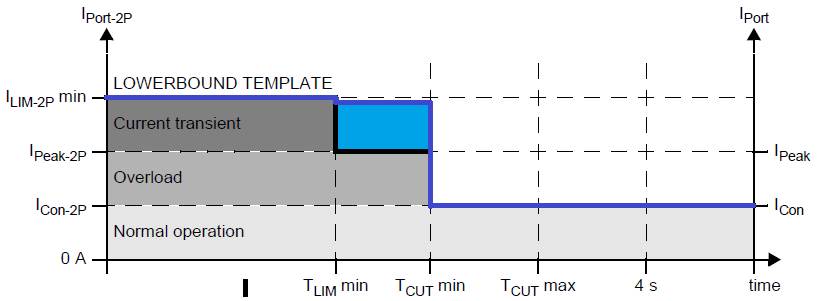

Hi Joris, I've included comments below, Best Regards, Ken On 11/4/2017 1:04 PM, Joris Lemahieu wrote: Hi Ken,   I reviewed the current standard (802.3-2015_SECTION2.pdf page 653). If Ttransient starts at the beginning of the transient and ends at the existing limits, then the sentence below is no longer true: “A Type2 PD with peak power draw that does not exceed PClass_PD max and has an input capacitance of 180 μF or less requires no special considerations with regard to transients at the PD PI.” See TR1_Type2PSE_Type2PD.png Ken-> Your simulation actually reveals a few things: 1) It shows ~600us at the beginning which is within the Ipeak range in Fig. 33-14 of the 2015 standard.  This is before the Ipeak-to-Ilim range is entered, and is indeed a justification that Ttransient shouldn't start at the beginning. 2) Your results also show 180uF max as being intrinsically ok in that it provides 10ms (Tlim_min) of signal which is above Ipeak.  The starting point where this is true isn't the end of the transient either, because it would support a much higher capacitance if it was. 3) It appears that the starting point is the point at which Ipeak is exceeded, which is variable with respect to the transient, depending upon the capacitance and any other PD circuits that affect the rise-time of the current draw.       >> Note that the lower bound Ipeak and Icon limits at the PSE are all voltage dependent by the equations used to generate them.  At the end voltage of the TR1,2 >> steps, the PSE Ipeak and Icon lower-bound limit values are lower: If we assume that a PSE would never instantly decrease it's current output capability to meet >> this new lower boundary, then there is a valid reason to extend the time for Ttransient.   I think we may even assume that a PSE does not adapt its peak current output capacity based on the actual Vpse voltage, but rather uses a fixed value based on the minimum VPort_PSE-2P voltage.   If the PSE does not adapt its current output capacity based on the actual Vpse voltage (or adapts it slowly), then the implemented Ipeak-2P actually matches Ilim-2P min for Type 1 and Type 2 ! -        Type1: Ilim-2P min is equal to the maximum Ipeak-2p (both 0.4A and Tlim,min=Tcut,min). -        Type2: Ilim-2P min is very close to the maximum Ipeak-2p (0.6826A vs 0.684A). This means then for TR1 transient behavior, that if the PSE does not need to limit the current any longer than Tlim,min it will be OK.   What PSE’s actually implement(ed) as the lowerbound template is then rather the blue curve below:     The blue curve still holds for the new Class 5 to 8, but the difference between Ilim-2P min and the maximum Ipeak-2p is more pronounced now: For a Type3 PSE: IPeak-2P@VPort_PSE-2Pmin is 14% lower than Ilim-2Pmin. For a Type4 PSE: IPeak-2P@VPort_PSE-2Pmin is 7% lower than Ilim-2Pmin. One option would then be to define Transient and its origin based upon the current not being above IPeak-2P@VPort_PSE-2Pmin any longer than Tlim,min.  Ken-> This option seems to make the most sense.   The only other valid option is to take the origin for Ttransient when the transient voltage is complete (Vpse constant and out-of-current limit) and add the requirement to TR1/2 that the PD may not force the PSE to be current limited to IIim,min more than Tlim,min. Ken-> This option has the problem that it doesn't cover potential Ipeak (Ipeak-2P) violations.     Remember the TR1/2 transient is to allow the switchover of back-up power supplies within the PSE and the occurrence will be rare. Ken-> True.  The confluence of worst cases at both ends and the channel probably will never happen. A lot of PSEs will not even contain a back-up power supply, making the TR1/2 transient behavior irrelevant in most cases. So this doesn’t necessarily mean the PSE lowerbound template for all PSE’s should change, but the ones that need to support the feature ‘switchover of back-up power supplies’ should anyhow have more margin than what is listed in figures 145-24 and 145-25. We could add a note/warning for Ken-> Good point. .     Best Regards,   Joris     From: Ken [mailto:ken_bennett@xxxxxxxxx] Sent: Friday, November 03, 2017 5:40 PM To: Joris Lemahieu ; STDS-802-3-4PPOE@xxxxxxxxxxxxxxxxx; lennartyseboodt@xxxxxxxxx Subject: Re: [802.3_4PPOE] PD Transients (yseboodt_04)   Hi Joris, Lennart, Based upon this discussion, I referred to the PSE section to try to determine what is actually interoperable.  Figures 145-24 and 145-25 show the lower bound limits of what a PSE must support.  These limits have the current transient (Ilim) region up to Tlim min, and then there's an immediate drop to Ipeak (which is calculated with Ppeak_PD).  If Ttransient starts at the beginning of the transient and ends at the existing limits, then interoperability is guaranteed.  If we change this rule to start Ttransient at the end of the step, then the PSE may shut down the PD if it doesn't meet Ipeak immediately after Tlim_min (in fig. 145-24/25). Note that the lower bound Ipeak and Icon limits at the PSE are all voltage dependent by the equations used to generate them.  At the end voltage of the TR1,2 steps, the PSE Ipeak and Icon lower-bound limit values are lower: If we assume that a PSE would never instantly decrease it's current output capability to meet this new lower boundary, then there is a valid reason to extend the time for Ttransient. Best Regards, Ken   On 11/3/2017 9:12 AM, Joris Lemahieu wrote: Hi Lennart and Ken,   I think the easiest way to solve this is to take the reference when the transient voltage is complete (Vpse constant and out-of-current limit). As this is the only reference point for which all simulated Pclass_PD and Cport combinations pass.   For interoperability, it might indeed be better to add the requirement to the TR1 and TR2 that the PD may not force the PSE to be current limited to IIim,min more than Tlim,min.     In principle I’m not against Ken’s suggestion to increase Ttransient and take another reference point. I only fear this could lead to a longer discussions. If we still want to take this path then I would suggest deducing the values from the following constraints: 1.     From the AC power waveform, define the Transient Energy = (Ppeak_PD – Pclass_PD)*Tlim,min and apply this to the Cport: ½ Cport (Vfinal^2 – Vinit^2). This gives one maximum value Cport 2.     The requirement that the PSE may not to be current limited to IIim,min more than Tlim,min gives another maximum value for Cport Take the minimum of both Cport values and define based on this capacitance the time the PD may exceed Ppeak_PD or Ppeak_PD-2P.     Best Regards,   Joris     From: Ken [mailto:ken_bennett@xxxxxxxxx] Sent: Wednesday, November 01, 2017 3:58 PM To: STDS-802-3-4PPOE@xxxxxxxxxxxxxxxxx Subject: Re: [802.3_4PPOE] PD Transients (yseboodt_04)   Hi Lennart, If there's currently no interoperability issue for 180uF and 360uF, then selection of the starting point only places a burden on the PD with respect to the test.  It's not clear to me that the test accurately reflects what a PSE will allow before shutting down, but in any case, I thought starting Ttransient at the conclusion of the step might have changed the test from its initial intent and simulations.  If actual interoperability is unaffected by it, then selecting the end of the step is ok, however I would suggest increasing Ttransient rather than starting it at the end of the step, to avoid ambiguity with respect to current limiting at the source. Best Regards, Ken   On 11/1/2017 10:15 AM, Lennart Yseboodt wrote: Hi Ken,   I checked the simulations. With the reference taken as when the system goes into a current limiting mode, at least Class 8 and Class 4 flip from OK to failing the transient requirement (with a 360uF and 180uF cap respectively). Other Classes may also be affected, I didn't check.   While I also am glad to see the "intrinsically OK" text gone, it should be our goal to make it such that PDs with capacitors of 180uF and 360uF do not need special provision to deal with transients. That is after all the basis on which TLIM and ILIM have been chosen.   Given that there is no interoperability issue with the reference taken when the voltage transient is complete, I fail to see why we should increase the burden on the PD ?   Kind regards,   Lennart   On Wed, 2017-11-01 at 09:48 -0400, Ken wrote: Hi Lennart, The TR1,2 are steps with a rise-time, however they are also described as having a current limit.  If the source current limiting kicks in, then the end of the transient doesn't occur until the limiting ceases.  The easiest reference is the beginning of the transient because there are no ambiguities.  I think this was the intent early-on, however as you point out, the rules aren't clear, and neither are the origins (at least in a quick search).  The existing text doesn't explicitly reference the beginning: During a transient the input power of the PD may exceed PPeak_PD or PPeak_PD-2P. Table 145–30 defines three PSE output voltage transients. When transient TR1 or TR2 is applied, the PD shall meet the operating power limits after TTransient as defined in Table 145. However If the intent was to reference the end of the transient, I would think the second sentence would have been: AFTER transient TR1 or TR2 is applied, the PD shall meet the operating power limits after TTransient as defined in Table 145. In any case, the TR1,2 test requirements are an extreme corner case and there's no longer any suggestion to the reader that specific capacitances will "intrinsically" pass, so I don't see a problem with the reference being at the beginning.  Best Regards, Ken   On 11/1/2017 8:29 AM, Lennart Yseboodt wrote: Hi Ken,   The PD not spending more than 6ms or 10ms in the current-controlled mode is also something the PD should meet. We currently do not have a requirement for this (ie. it is possible to meet TR1/TR2 but spend more than TLIM in the input current mode). Note that all Class/Type combinations currently do not violate TLIM.   The current text does not offer a reference for Ttransient. I picked the end of the source transient because it is an easy to find point. If we shift the reference point backward in time, the PD margin decreases and we may have to increase ILIM to TLIM to make things work again.   - Should we add a requirement to the TR1 and TR2 that the PD may not be current limited to ILIM for more than TLIM ? - Given that currently there is no issue with TLIM, do you still feel we should move the reference point back ?   Kind regards,   Lennart   On Mon, 2017-10-30 at 09:39 -0400, Ken wrote: `Hi Lennart,` `The new text:  "referenced from when the ‘final voltage’ is reached at ` `the source", sets a time boundary which is after the time that the PD ` `starts to violate Ppeak_PD.  Seems like it should start at the beginning ` `of the transient, so that the PD Peak excursions that are beyond ` `Ppeak_PD are no wider than 10ms and 6ms, to match Tlim_min in the PSE ` `section.` `Best Regards,` `Ken` ` ` `On 10/29/2017 10:09 AM, Lennart Yseboodt wrote:` ` ` `Hi folks,` ` ` `Attached proposed baseline for the PD transients section.` `At the September meeting it became obvious that Table 145-30 wasn't ` `terribly clear.` ` ` `I've re-simulated all of the transient conditions and, except for ` `Class 7, everything is OK.` `We may want to consider increasing the ILIM for Class 3, Class 4, and ` `Class 8 to make it such that PD's that "intrinsically" should be fine ` `actually are.` `See simulation_annot.pdf for simulation results.` ` ` `Kind regards,` ` ` `Lennart` ` `
