Re: [802.3_NGEPON] 802.3ca consensus meeting notes from 2/14/19

All,



Here are updates/thoughts on action items 12-15:

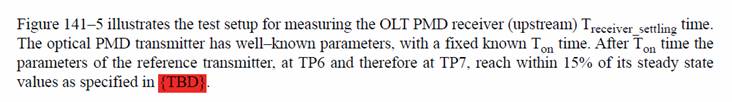

Action item #12 is related to TBDs in this text:



First, paragraphs 2 and 3 are out of place here.  Only paragraphs 1 and 4 should remain.

The paragraph 2 should be moved to section 141.7.17 (insert between 141.7.14 and 141.7.14.1 headers). Replace the TBD in this paragraph with 800 ns (based on the contribution from Curtis and Frank  that we reviewed today.) I already made this change in Action Item #14 (see below).



Paragraph 3 should be removed from this location.

Bill and Ed need to figure out what to do with the Tcdr definition.  Clause 142 talks about what ONU transmits during Tcdr time, but never provides any definition of it or measurement methodology. This is the only remaining gap for AI #12. If we need to add an illustration of Tcdr measurement to Figure 141-3, let me know.



Action Item #13 is related to this text:

The â??Figure <TBD>â?? is resolved by action item #14 (see below). The only remaining gap here is to fill the jitter reference â??â?¦jitter (see {TBD}).â??  I believe this simply should point to the OLT receiver tables 141-15/16 with Stressed Jitter parameters that Curtis and Frank presented on the call today. I already made this change in Action Item #14 (see below). If you agree with this change, we can close this action item.



Action item #14 is done. See the attached document (clean and diff versions are attached).  Send me comments or questions, if any.



Action item #15 is related to this text:

This TBD should simply reference the ONU Transmit Characteristics tables 141-17 and 141-18.



That is all that is needed to close these action items.



-Glen









From: Curtis Knittle [mailto:C.Knittle@xxxxxxxxxxxxx]
Sent: Thursday, February 14, 2019 11:58 AM
To: STDS-802-3-NGEPON@xxxxxxxxxxxxxxxxx
Subject: [802.3_NGEPON] 802.3ca consensus meeting notes from 2/14/19



Dear Colleagues,



Attached please find:

1)      Updated 25G/50G RX PMD parameters

2)      Updated action item list



Please let me know if I need to add to or revise the meeting notes below.



Curtis





2/14/2019

IEEE 802.3ca 100G-EPON Task Force Work Items and Socialization ad hoc conference call



·         Review of Patent Policy.

o    Curtis Knittle read the Call for Potentially Essential Patents â?? no response to call.

·         Multi-rate discovery process for .3ca MPCP Clause 144 (Hajduczenia)

·         25G/50G EPON RX PMD Values (Knittle/Effenberger)

·         Action item review

·         Deadlines:

o    Contribution deadline for requesting time on the agenda and draft PDF files: Monday, March 4, 2019 AoE

§  See http://www.ieee802.org/3/ca/3ca_presentproc.shtml for details on submissions

o    Draft 1.5 Comment deadline is Monday, March 4, 2019 AoE. For details, please see http://www.ieee802.org/3/ca/3ca_commentproc.shtml

·         Action Items:

o



Name

Employer/Affiliation

Alan Brown

Adtran, Inc.

Allard van der Horst

Semtech

Alexander Umnov

Corning

Andre Lessard

CommScope

Bill Powell

Nokia

Bruce Chow

Corning

Barry Colella

Source Photonics

Claudio Desanti

Google

Curtis Knittle

CableLabs

Dave Baran

Arris

David Claussen

Charter

David Law

HPE

Dekun Liu

Huawei

Derrick Cassidy

BT

Dora Van Veen

Nokia

Doug Jones

Comcast

Duane Remein

Huawei

Earl Parsons

CommScope

Ed Harstead

Nokia

Ed Walter

AT&T

Fernando Villarruel

Cisco

Francois Menard

Aeponyx

Frank Effenberger

Huawei

Glen Kramer

Broadcom

Greg LeCheminant

Keysight

Hal Roberts

Calix

Hesham ElBakoury

Huawei

Jesus Cotano

Telefonica

Jean-Christophe Marion

Tibit Communications

Jeff Finkelstein

Cox

Joe Jensen

Buckeye Communications

John Dâ??Ambrosia

Futurewei subsidiary of Huawei

John Johnson

Broadcom

Jorge Salinger

Comcast

Junwen Zhang

ZTE

Kenneth Jackson

Sumitomo

Kevin Bourg

Corning

Kevin Noll

Tibit Communications

Lilin Yi

Fiberhome

Marek Hajduczenia

Charter

Mark Laubach

Broadcom

Matt Sheppard

Virgin Mobile

Michael Peters

Sumitomo

Mike Darling

Shaw

Mike Emmendorfer

Arris

Moiz Lokhandwala

Charter

Moon Park

OE Solutions America

Pete Anslow

Ciena

Pete Pondillo

Corning

Phil Miguelez

Comcast

Philip Oakley

Virgin Media

Qing Xu

Belden

Richard Zhou

Charter

Roger Stafford

Charter

Ryan Hirth

Broadcom

Ryan Tucker

Charter

Saif Rahman

Comcast

Sebnem Ozer

Comcast

Sergio Prieto

Telefonica

Shan Wey

ZTE

Shawn Esser

Finisar

Victor Hou

Broadcom

Vincent Houtsma

Nokia

Wang Suyi

Fiberhome

Xiang Liu

Huawei

Yong Kim



Zhou Zhen

Fiberhome

Vince Ferretti

Corning









Curtis Knittle

VP Wired Technologies â?? R&D

CableLabs

desk: +1-303-661-3851

mobile: +1-303-589-6869

c.knittle@xxxxxxxxxxxxx
