[STDS-802-11-TGBF] Follow-up on the Discussion on NDP Transmission in TF Sounding Phase





Hi all,



To follow-up on the discussion we started in contribution 22/0654r0, I share the table below to summarize the methods we presented in the meeting.

Please share your feedback/comments/suggestions to different methods to enable efficient WLAN sensing in various use cases and scenarios, including the one with large number of sensors.

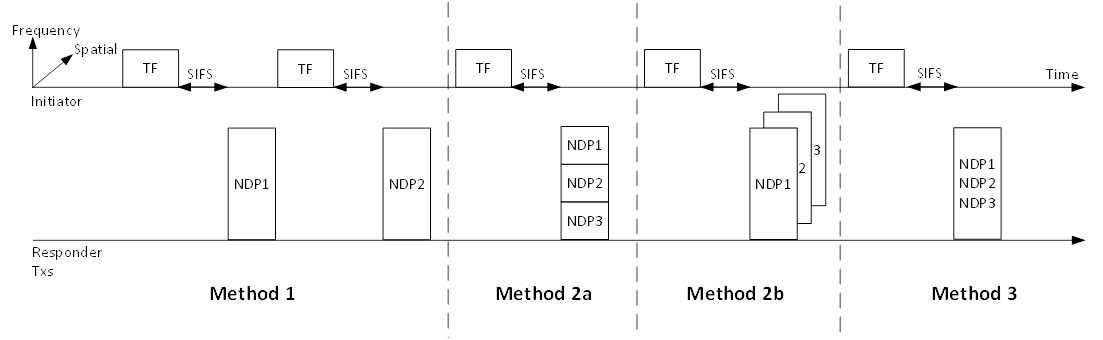

The figure below is included for reference.





Method 1

Method 2a

Method 2b

Method 3

Domain

Time Domain

Frequency Domain

Space Domain

Non-Orthogonal

Legacy Use

Secure/regular LTF in the uplink (Ranging)

Not used in the current standard

HE TB Ranging NDP

Not used in the current standard

Support in the Standard

Supported

Not Supported

Supported

Not Supported

Use cases

Multiple Triggering Sequence in case of large number of triggered sensing responders

Triggering multiple low-end devices (20MHz-only STAs)

Triggering multiple sensors such that each sensor sends the NDP over the entire bandwidth simultaneously

Coarse efficient sensing in scenarios with a large number of sensing responders

Pros

Simplicity

Support of 20MHz-only STAs

Simplicity

Efficiency

(Support of a large number of sensing responders in the same TXOP)

Potential Problems

  • Inefficient WLAN sensing
  • Limited number of sensing responders in the same TXOP
  • Complex allocation of uplink resources
  • Limited number of sensing responders in the same TXOP
  • Sensing accuracy
  • Power Control
  • Limited number of sensing responders in the same TXOP
  • Power Control
  • Synchronization









Best regards,

Mahmoud





From: Mahmoud Kamel
Sent: Wednesday, April 20, 2022 6:37 PM
To: Hanxiao (Tony, WT Lab) <0000177ab8f731c4-dmarc-request@xxxxxxxxxxxxxxxxx>; STDS-802-11-TGBF@xxxxxxxxxxxxxxxxx
Subject: RE: TGbf meeting on April 19, and 21



Hi Tony,



Please add the contribution below to the agenda for next week.



19-Apr-2022 ET

2022

654

0

TGbf

Discussion on NDP Transmission in TF Sounding Phase

Mahmoud Kamel (InterDigital)

20-Apr-2022 11:38:02 ET

Download





Best Regards,

Mahmoud
