Re: [802.3_NGBASET] IEEE 802.3bz 2.5/5GBASE-T TF Arch AdHoc conf call - reminder for Monday, June 20, 2016 9:00 AM-10:00 AM PDT.



Thanks William.

Materials from the ad hoc call today are posted here:

http://www.ieee802.org/3/NGEBASET/public/archadhoc/index.html



I encourage the group to continue discussing this issue over the reflector prior to the interim meeting next Monday.

For anyone wishing to make a presentation at the interim meeting, I will accept requests and presentations until Friday this week (5pm Pacific Time).

Thanks,

Dave







From: William Lo [mailto:williaml@xxxxxxxxxxx]
Sent: Monday, June 20, 2016 9:41 AM
To: STDS-802-3-NGBASET@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_NGBASET] IEEE 802.3bz 2.5/5GBASE-T TF Arch AdHoc conf call - reminder for Monday, June 20, 2016 9:00 AM-10:00 AM PDT.



Hi Arthur,



For 2.5GBASE-X link fault signaling will be there. It lets 802.3cb align with 802.3bz.

Task force decided to keep it in for 802.3cb.

http://www.ieee802.org/3/cb/public/may16/Lo_3cb_01a_0516.pdf



Also 802.3cb is designed to be compatible with 1000BASE-X PCS running 2.5x faster.

This is true even if a 2.5GBASE-X PCS sends out link fault signaling.  The 2.5GBASE-X PCS

link fault signaling is designed to look like idles to the 1000ABSE-X PCS.

See Annex 127B in the 802.3cb for further description.



For 5GBASE-R the link fault signaling is already baked in since it adopts the 10GBASE- R PCS.



Thanks,

William





From: Arthur Marris [mailto:arthurm@xxxxxxxxxxx]
Sent: Monday, June 20, 2016 3:54 AM
To: STDS-802-3-NGBASET@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_NGBASET] IEEE 802.3bz 2.5/5GBASE-T TF Arch AdHoc conf call - reminder for Monday, June 20, 2016 9:00 AM-10:00 AM PDT.



I have prepared the attached presentation for today’s ad hoc call.



I have also submitted a comment against draft 3.1 to request making link fault signalling optional for 2.5G and 5G data rates.



From: Peter Jones (petejone) [mailto:petejone@xxxxxxxxx]
Sent: 20 June 2016 05:05
To: STDS-802-3-NGBASET@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_NGBASET] IEEE 802.3bz 2.5/5GBASE-T TF Arch AdHoc conf call - reminder for Monday, June 20, 2016 9:00 AM-10:00 AM PDT.



Folks,



Reminder for tomorrow.

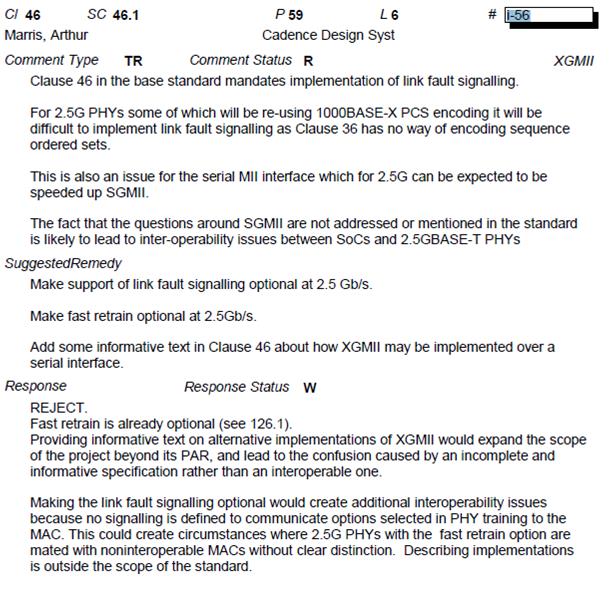

I’m expecting a discussion of an unresolved negative vote from May in Whistler. The comment is i-56 (see below from http://grouper.ieee.org/groups/802/3/bz/comments/8023bz_D30_approved.pdf).



Regards

Peter





_________________________________________________

Peter Jones

802.3bz 2.5/5GBASE-T Task Force Arch Ad Hoc Chair

_________________________________________________





-----Original Appointment-----
From: Peter Jones (petejone)
Sent: Sunday, June 12, 2016 10:17 PM
To: Peter Jones (petejone); STDS-802-3-NGBASET@xxxxxxxxxxxxxxxxx
Cc: Brillhart, Theodore; Liuyun (Daniel); Arthur Marris; sebastien2.vitrant@xxxxxxxxxxxxxxxxxxxxxx; Sambasivan, Sam; derek.cassidy@xxxxxx; Khan, Muhammad; Clark Carty (ccarty); Pachon, Arturo; Goh, Chee Kiang; Andrew Jimenez; Kamal Dalmia; Jon_Lewis@xxxxxxxx; Paul VANDERLAAN; Amrik Bains (ambains); Victor Renteria; Brian Holden; Elizabeth Kochuparambil (edonnay); Moffitt, Bryan; anna.an@xxxxxxxxxxxxxxx; George Zimmerman; Goel, Pankaj; Herman, Todd; kumaran.krishnasamy@xxxxxxxxxxxx; Matt SCHUMACHER
Subject: IEEE 802.3bz 2.5/5GBASE-T TF Arch AdHoc conf call
When: Monday, June 20, 2016 9:00 AM-10:00 AM (UTC-08:00) Pacific Time (US & Canada).
Where: Webex





Hi Folks,



This meeting is back by request. We have some Sponsor Ballot comments to look into before the interim on June 27th. The timeslot has been moved to accommodate some key people.



Agenda information will be provided prior to each meeting.



Please familiarize yourself with the meeting guidelines and patent policy before the meeting.
